50K Haulin' 5th Wheel Hitch Features
- 50,000 lb hitch capacity for heavier commercial towing applications
- Adjustable locking jaws to maintain a secure fit around the kingpin as components wear
- Upgraded bearings for the newest generation of the Haulin' hitch
- Self-lubricating oil-embedded bronze bearing at the main pivot
- No manual lubrication required at the main pivot
- Low-profile design built for commercial hauling setups
- Bolt-on installation
- High-quality U.S. steel construction
- 190 lb hitch weight
- 18 × 18 × 8 in dimensions
- Built in Lexington, North Carolina
Built for Heavier Commercial Hauling
The 50K Haulin' gives operators who are reaching the limits of a lower-capacity hitch another option within HitchCrafter's Haulin' lineup. Its 50,000 lb hitch rating makes it suited for heavier towing applications involving large machinery, construction equipment, industrial cargo, and other demanding loads. That does not mean every truck equipped with the 50K can tow 50,000 lbs. Your truck, chassis, trailer, axles, tires, mounting equipment, licensing requirements, and other components can all reduce the amount your complete setup can safely and legally tow.Adjustable Locking Jaws
One of the biggest upgrades on the 50K Haulin' is its adjustable locking jaw system. The jaws allow the fit around the trailer kingpin to be tightened as components wear over time.
Why it matters: Maintaining a tighter fit helps keep the kingpin connection secure and can extend the service life of internal hitch components.

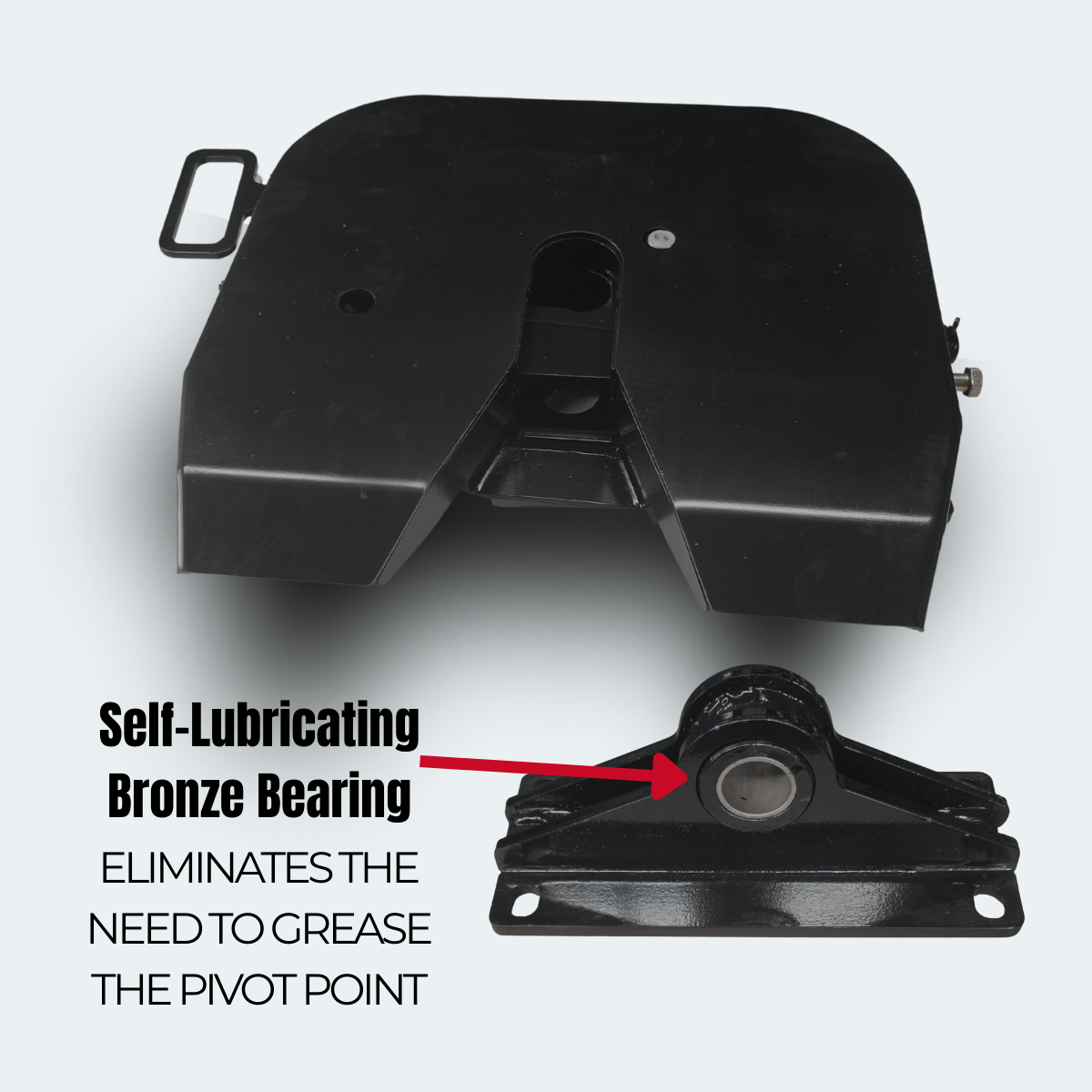

Self-Lubricating Main Pivot
The main pivot uses an oil-embedded bronze bearing that lubricates the pivot during use, replacing a traditional manual grease point.
Why it matters: You do not have to manually grease this pivot point during routine maintenance, although the hitch should still be inspected and maintained as recommended.
Built in North Carolina With U.S. Steel
HitchCrafter builds the 50K Haulin' at its Lexington, North Carolina facility using high-quality U.S. steel. It keeps the compact, low-profile design of the Haulin' line while increasing hitch capacity and adding the adjustable jaws, upgraded bearings, and self-lubricating main pivot developed for the 50K model.What Comes With the 50K Haulin' Head Unit?
The 50K Haulin' Head Unit includes the hitch head itself. Mounting plates are not included. This makes the standalone head unit a good fit if you already have the appropriate mounting components or are building a setup that uses compatible HitchCrafter mounting equipment. If you need the hitch and mounting system together, choose the complete 50K setup designed for your truck:
50K Haulin' Head Unit Specs
| Specification | Details |
|---|---|
| Product | 50K Haulin' Head Unit |
| SKU | HC50KHH |
| Hitch Capacity | Up to 50,000 lbs |
| Hitch Style | Low-profile 5th wheel hitch |
| Installation | Bolt-on |
| Locking Jaws | Adjustable |
| Main Pivot Bearing | Self-lubricating oil-embedded bronze bearing |
| Construction | U.S. steel |
| Weight | 190 lbs |
| Dimensions | 18 × 18 × 8 in |
| Mounting Plates Included | No |
| Manufactured In | Lexington, North Carolina |
Order the 50K Haulin' Head Unit
Already have the correct mounting setup? Add the 50K Haulin' Head Unit to your cart for a 50,000 lb HitchCrafter hitch with adjustable locking jaws, upgraded bearings, and a self-lubricating main pivot. Need the complete hitch and mounting system instead? Call HitchCrafter at (336) 859-3257 with your truck's year, make, model, and chassis type. We'll help you determine which 50K configuration fits your truck before you order.Head unit only. Mounting plates are not included.
